CD Series Infratech Patio Heater

starts at $1120

★ ★ ★ ★ ★ Powerful Heat, Whisper-Quiet Performance

Shop Heater

  • From soft spring nights to winter chill—tailor your heat, year-round.

  • Seamless Smart Home integration– Sync with Siri, Alexa, or Google.

  • 90% Eco-efficient dual-quartz electric heat with zero open flames.

1 3
Size
Color
$1,120.00 CAD
$1,120.00 CAD
Sale Sold out
Shipping calculated at checkout.
View full details

Why You’ll love the Infratech CD Heater

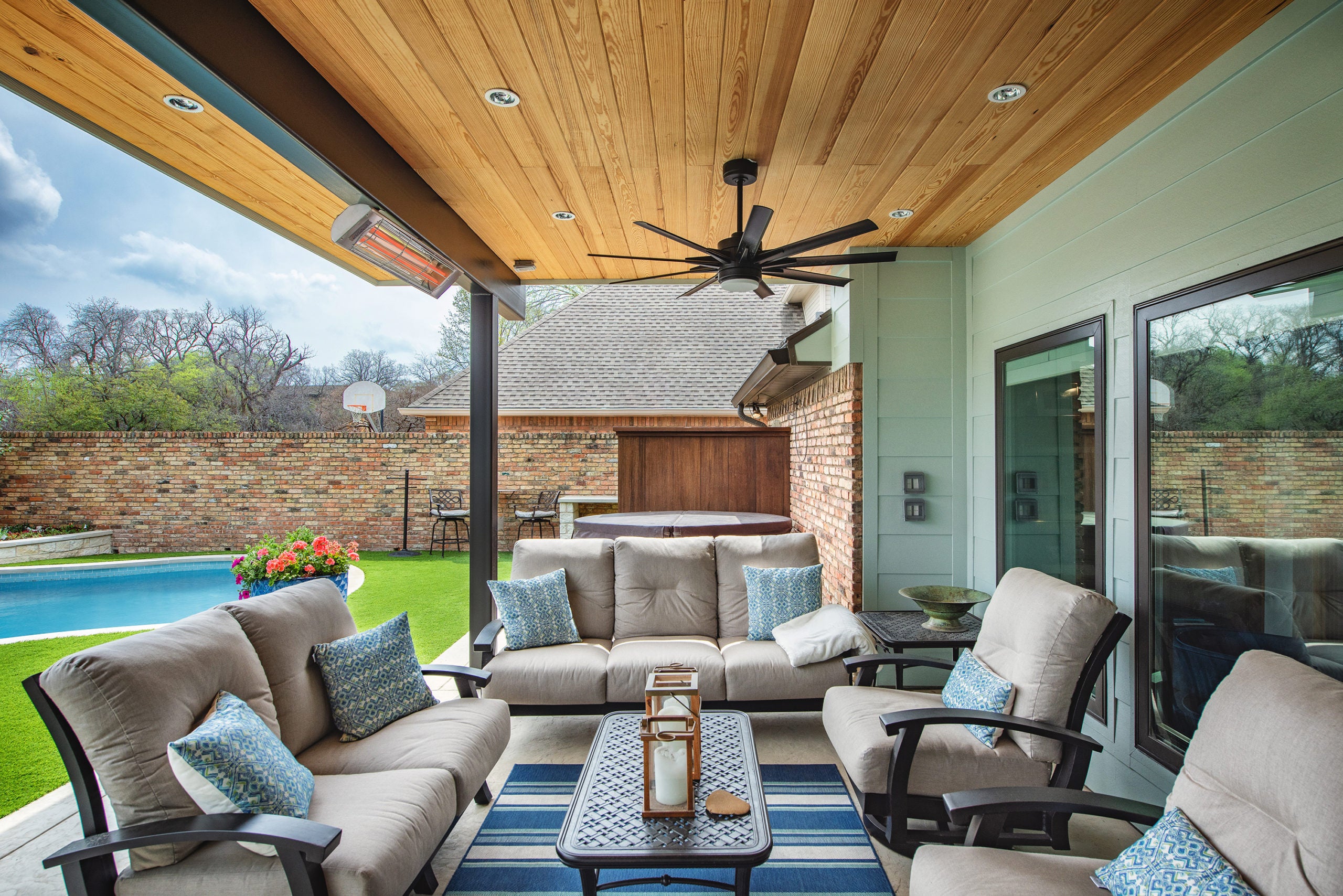

✦ Sleek, low-profile design that disappears into ceilings and pergolas

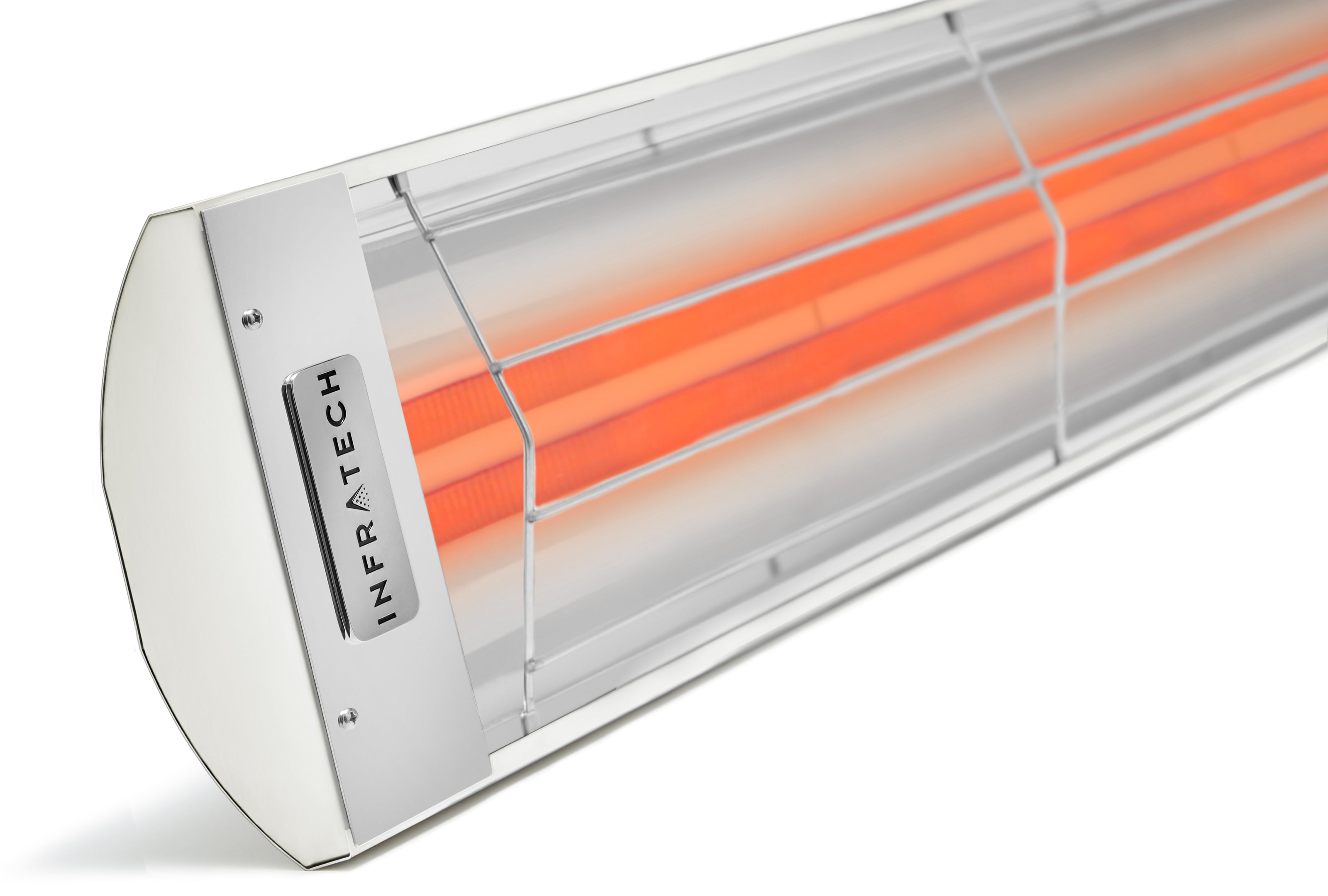

✦ Dual quartz element infrared heat for high-powered, even warmth

✦ Infrared heat doesn’t “blow away” in windy conditions, making it ideal for breezy areas where air cannot be contained.

✦ Medium Wave means no harsh glares.

✦ Silent operation with no moving parts

Shop Heater

Details that Matter:

✦ Wattage Range: 4,000–6,000 watts

✦ Coverage Area: Heats up to 11' x 11' depending on conditions

✦ Control Options: Duplex switches, Universal Control Panels, or ask us about integrated Smart Home compatibility

✦ Voltage Options: 240V

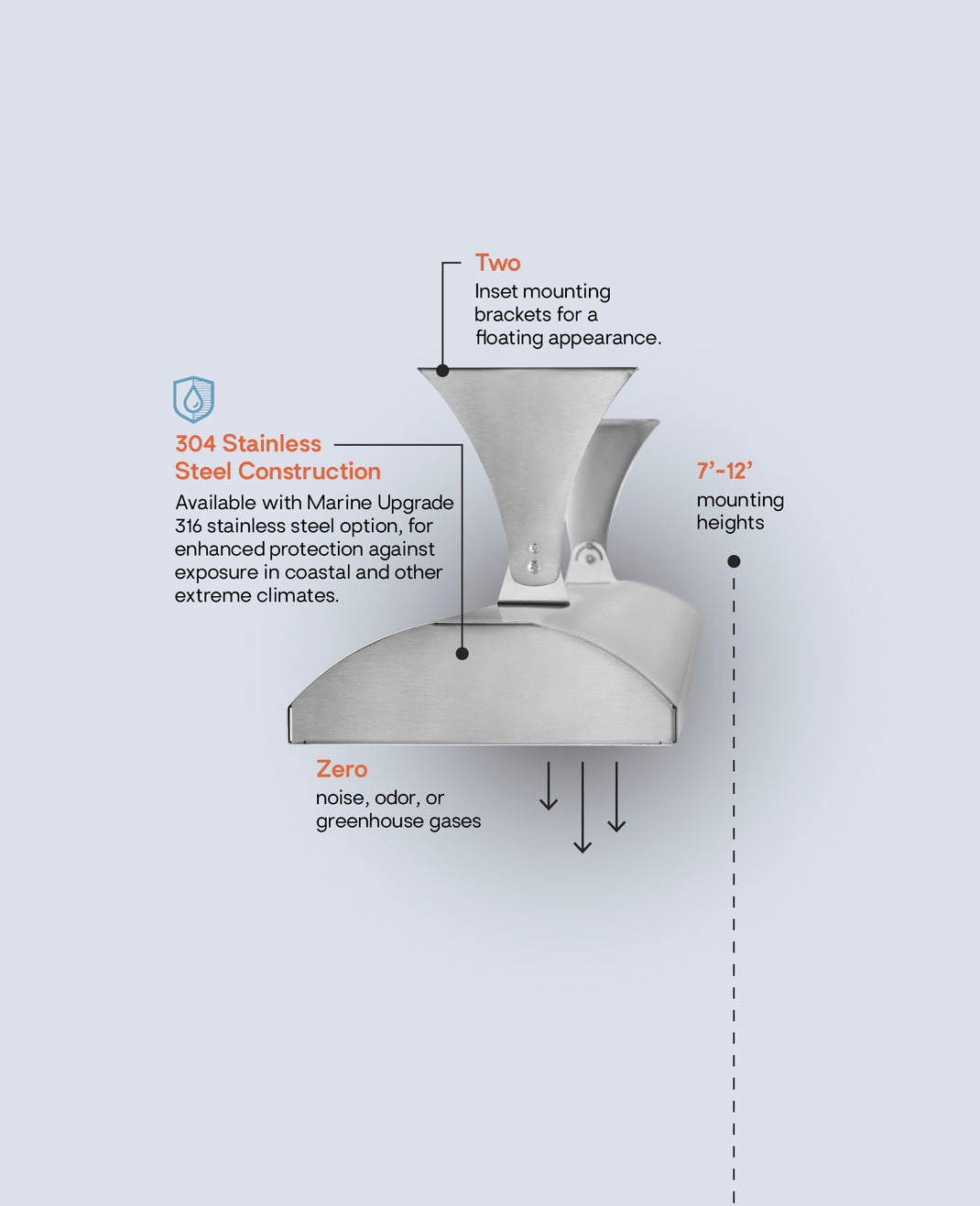

✦ Materials: 304 Stainless Steel (standard), 316 Marine-Grade (optional)

✦ 3 year warranty

Shop Heater

Select your Heater Size

Heat That Fits Your Layout

Each unit is engineered for optimal heat coverage and smooth integration—just allow 6" of space behind, 18" on the sides, and 36" below or in front for perfect performance.

SHOP HEATER

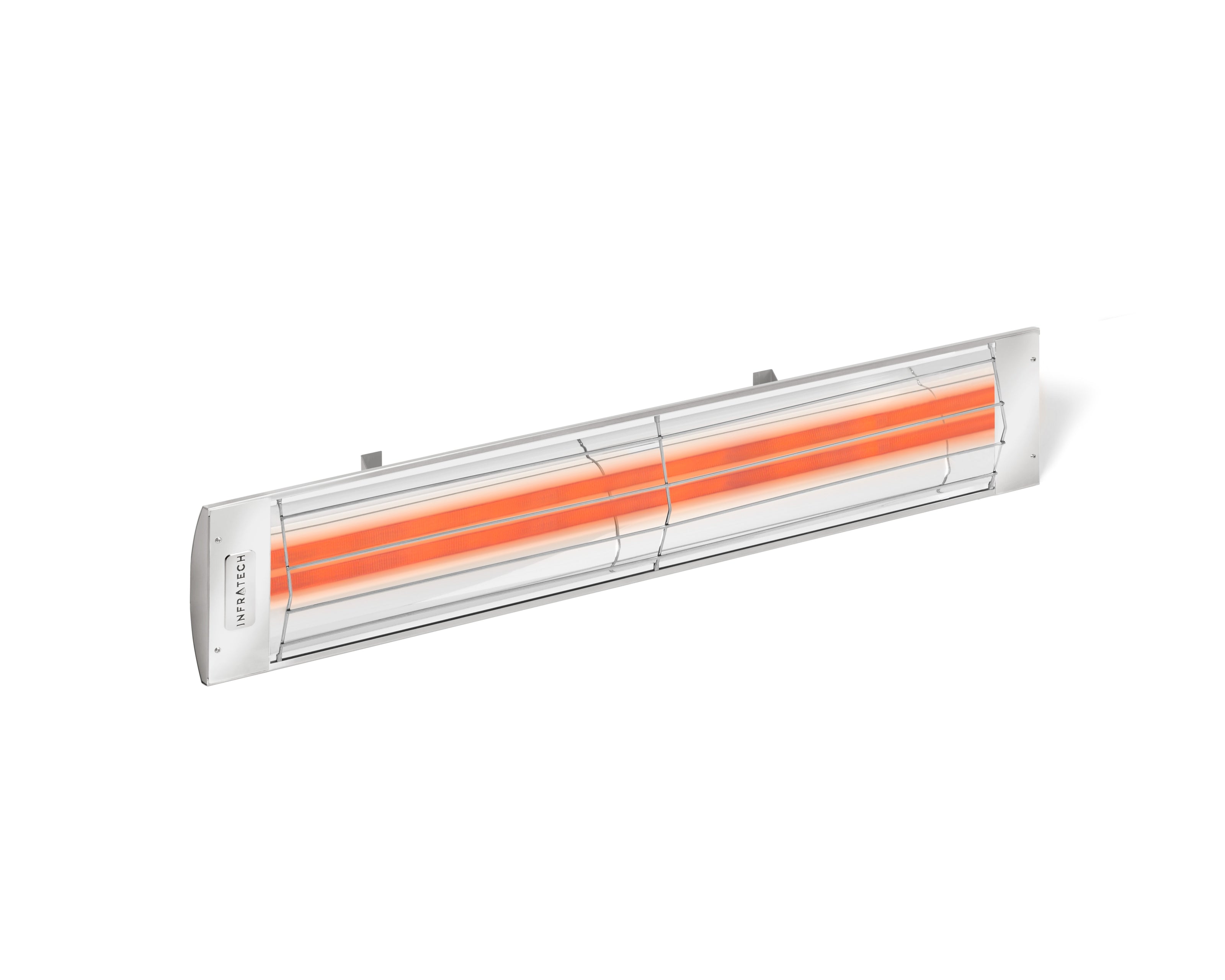

  • CD - 33” L

    Best for small-sized spaces, or space involving a wall enclosure.

    ✦ WATTS: 3000


    ✦ Heating Area: 7’ x 7’


    ✦ Mounting Height: 7’ to 9’


    ✦ Durability: 304 stainless steel  or 316 stainless steel marine grade option.


    ✦ Colours: Black, White. Ask us about additional colour options.

  • CD - 39” L

    Best for mid-sized spaces with/without wall enclosures.

    ✦ WATTS: 4000


    ✦ Heating Area: 8’ x 10’


    ✦ Mounting Height: 8’ to 12’


    ✦ Durability: 304 stainless steel  or 316 stainless steel marine grade option.


    ✦ Colours: Black, White. Ask us about additional colour options.

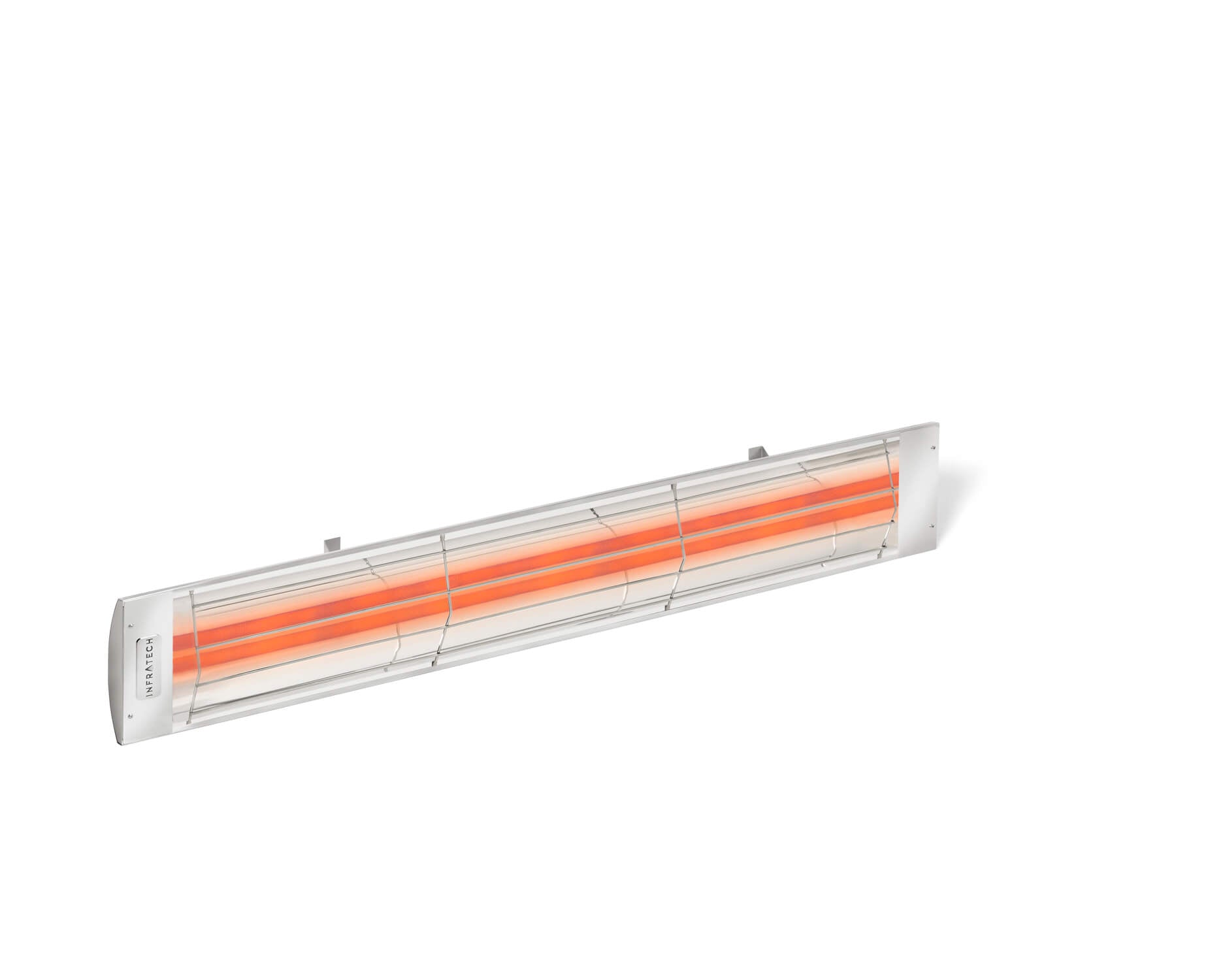

  • CD - 48” L

    Best for mid to large sized spaces with/without wall enclosures.

    ✦ WATTS: 5200


    ✦ Heating Area: 9’ x 10’


    ✦ Mounting Height: 8’ to 12’


    ✦ Durability: 304 stainless steel  or 316 stainless steel marine grade option.


    ✦ Colours: Black, White. Ask us about additional colour options.

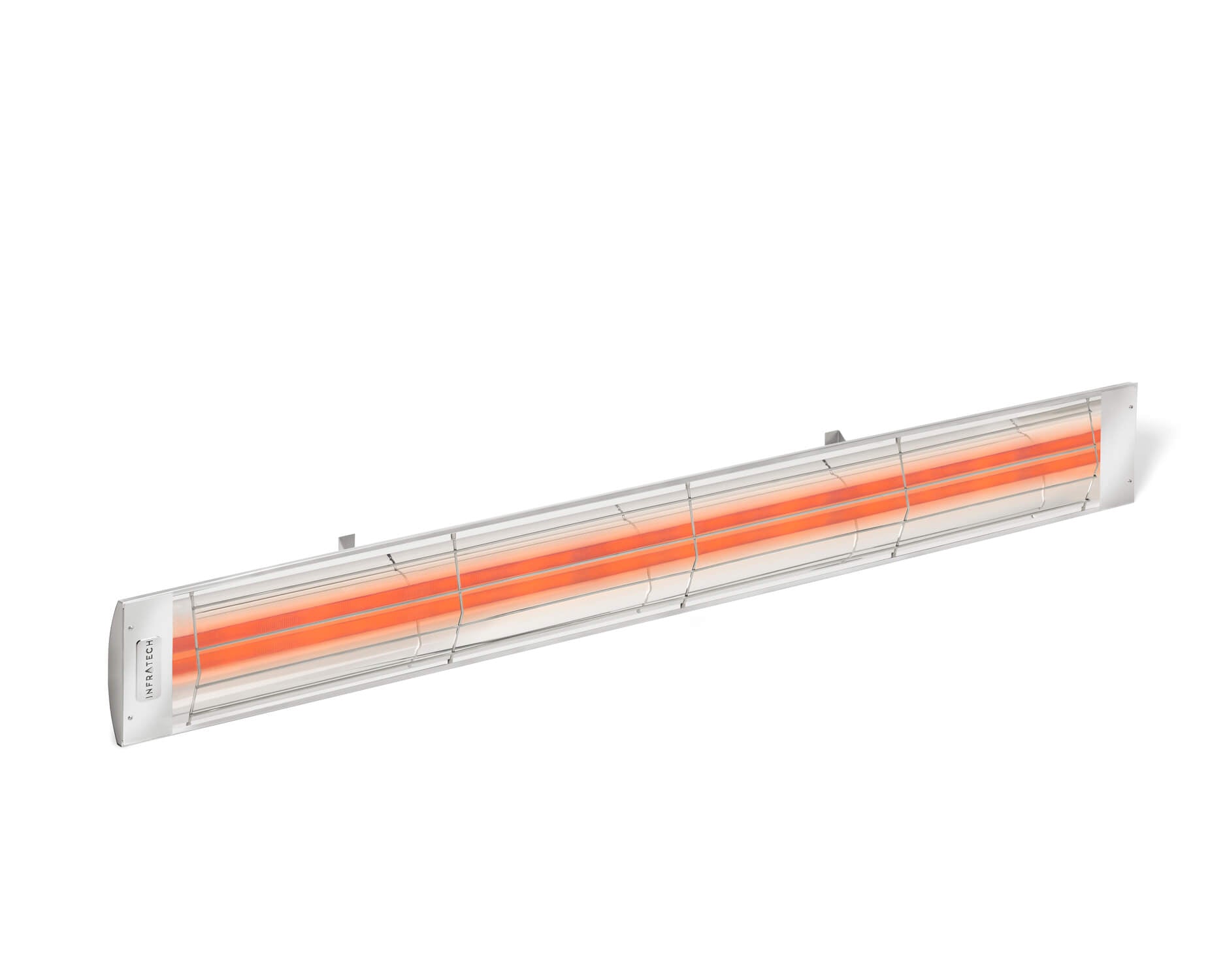

  • CD - 61.25” L

    Best for large-sized spaces, particularly without wall enclosures.

    ✦ WATTS: 6000


    ✦ Heating Area: 11’ x 11’


    ✦ Mounting Height: 10’ to 14’


    ✦ Durability: 304 stainless steel  or 316 stainless steel marine grade option.


    ✦ Colours: Black, White. Ask us about additional colour options.

1 4

How to Select Your Perfect Patio Heat?

  • Step 1

    Measure Your Space

    Start by noting the dimensions and mounting height of your area. You’ll want to measure the length, height and width of your area.

  • Step 2

    Heater Size

    Pick the model that fits your layout. Remember to consider what height your heater will sit at. If it’s 10ft or more off the ground, you’ll want the 48” or larger size.

    Check our detailed coverage chart [PDF]

  • Step 3

    Heater Quantity

    Consider elements like wind, fog or any wall enclosures to determine how many heaters you’ll need. In sheltered spaces, you’ll get more coverage. For open, windy, or colder areas, plan for a bit more heat power.

1 3

Design in Black or White, Controlled by Duplex

Select black or white units with a duplex switch for on/off. Ask us about more robust panels, smart-home connectivity or additional colour options.

Shop Heater Talk to an Expert

  • White

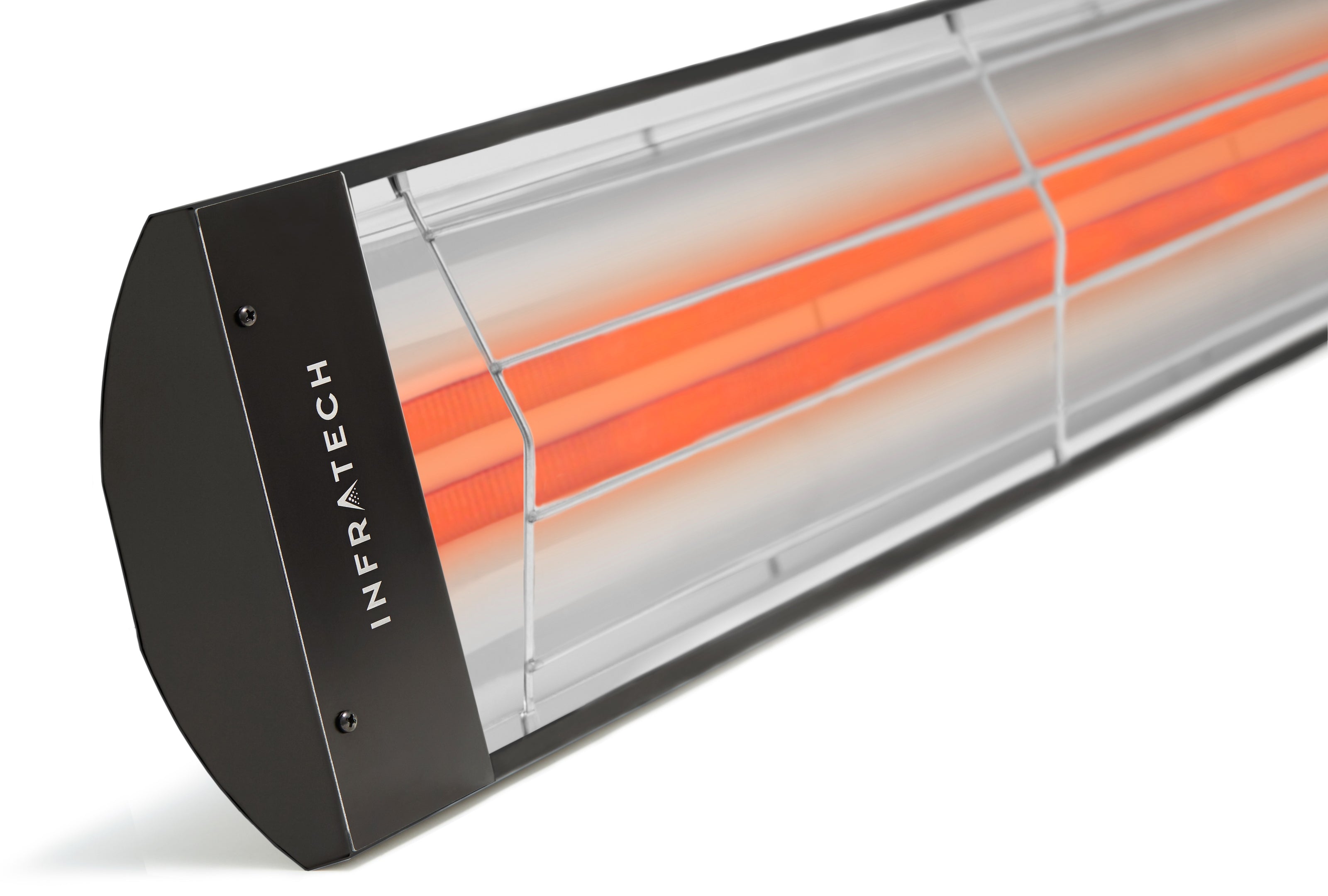

  • Black

  • Controlled by Duplex

1 3

Have Questions?

CD Series - Infratech Heater FAQ’s

Infratech CD-Series heaters are highly energy-efficient, converting over 90% of their input energy into radiant heat. They operate silently, produce no emissions, and require minimal maintenance, making them an eco-friendly and cost-effective heating solution.
Maintenance for CD-Series heaters is minimal. Regularly clean the heater surfaces to remove dust and debris. The quartz heating elements have an approximate lifespan of 5,000 hours and can be replaced when necessary. There are no moving parts, valves, or burners, reducing the need for frequent servicing.
Yes, Infratech CD-Series heaters are compatible with various smart home systems, including Lutron™, Crestron™, Control4™, and others. Integration requires a 0-10V DC signal, allowing for seamless control through your existing home automation setup.
For safe and efficient operation, Infratech CD-Series heaters require:
- A minimum of 6 inches of clearance behind the heater.
- At least 18 inches of clearance on all sides and ends.
- A minimum of 36 inches of clearance below or in front of the heater.infratech.com

These clearances ensure proper heat distribution and safety during operation.
Infratech offers a three-year warranty on all CD-Series heaters, covering defects in materials and workmanship. By registering your heater online, you also gain access to Infratech’s Heater Maintenance Program, which includes benefits like free replacement end reflectors when needed.
Yes, the CD-Series heaters are UL listed for both indoor and outdoor use. They are constructed from durable 304 stainless steel, and for coastal or extreme environments, a marine-grade 316 stainless steel option is available, providing enhanced corrosion resistance.
